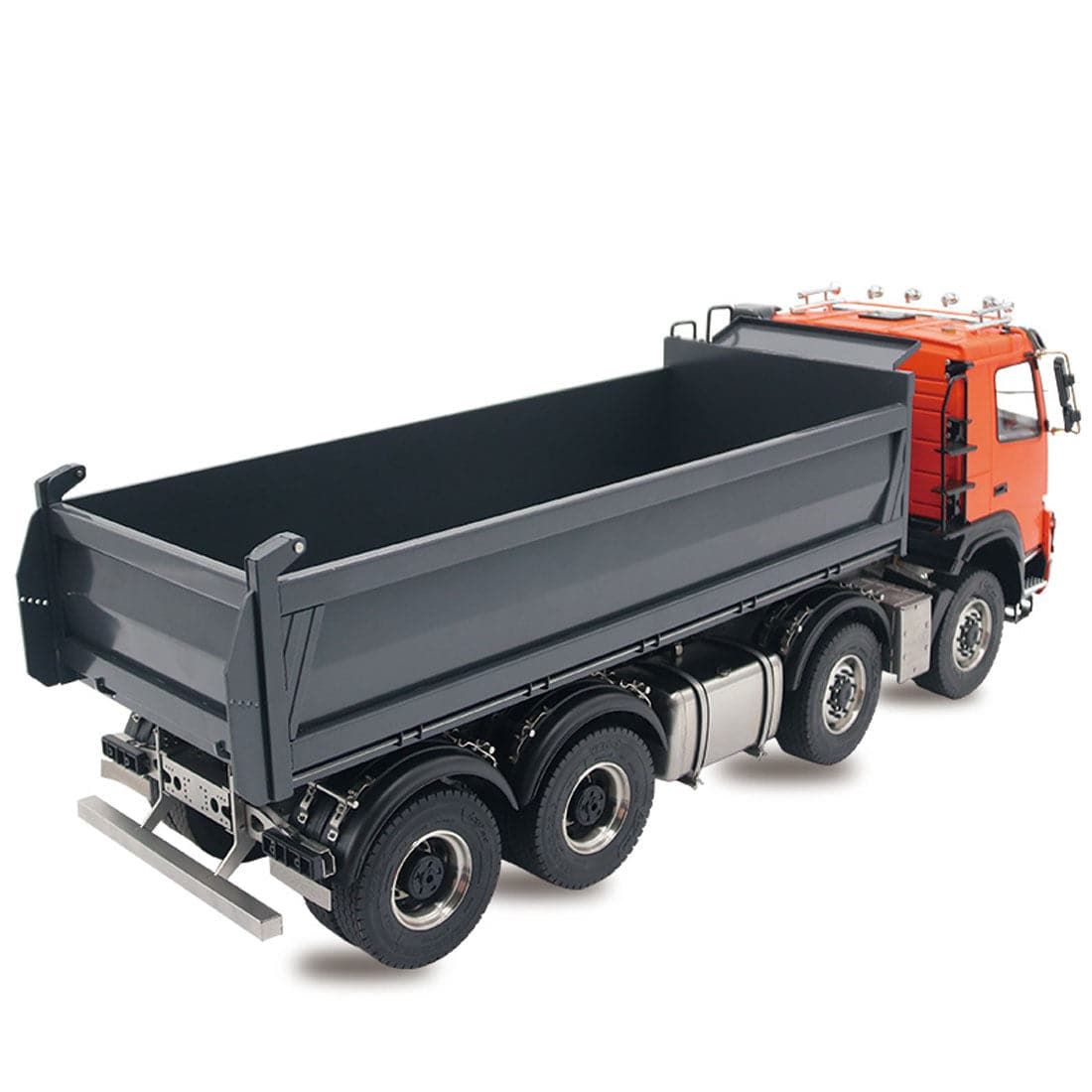

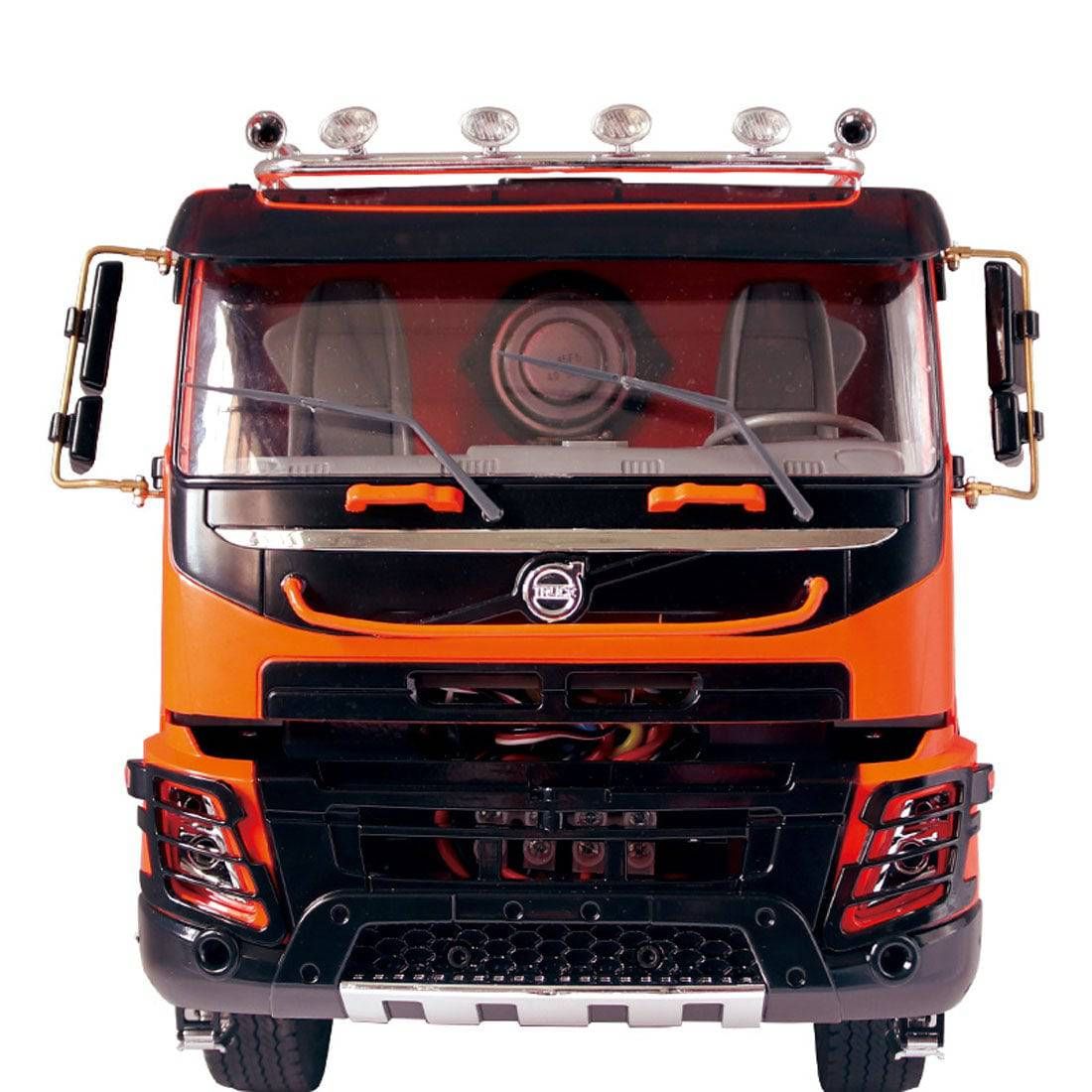

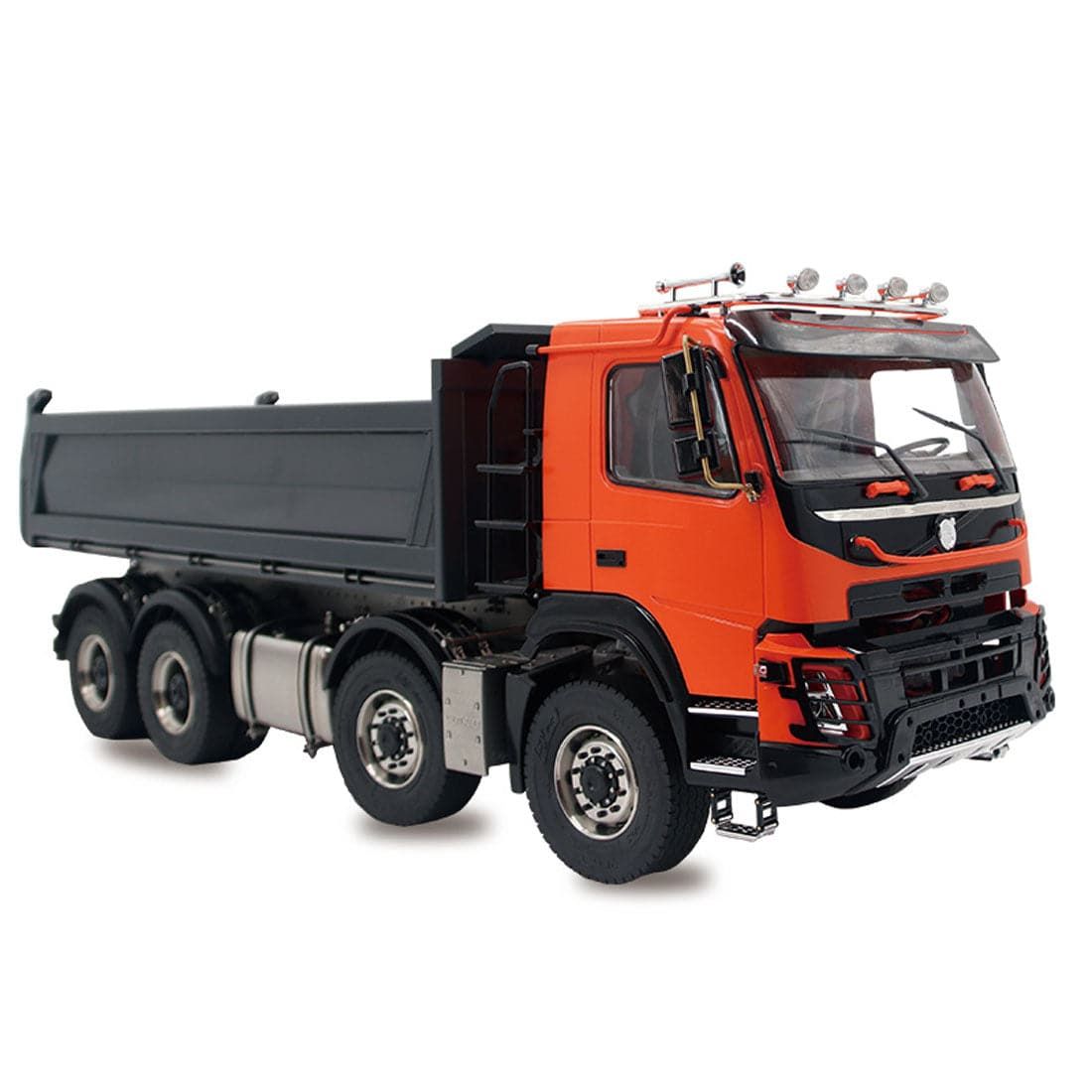

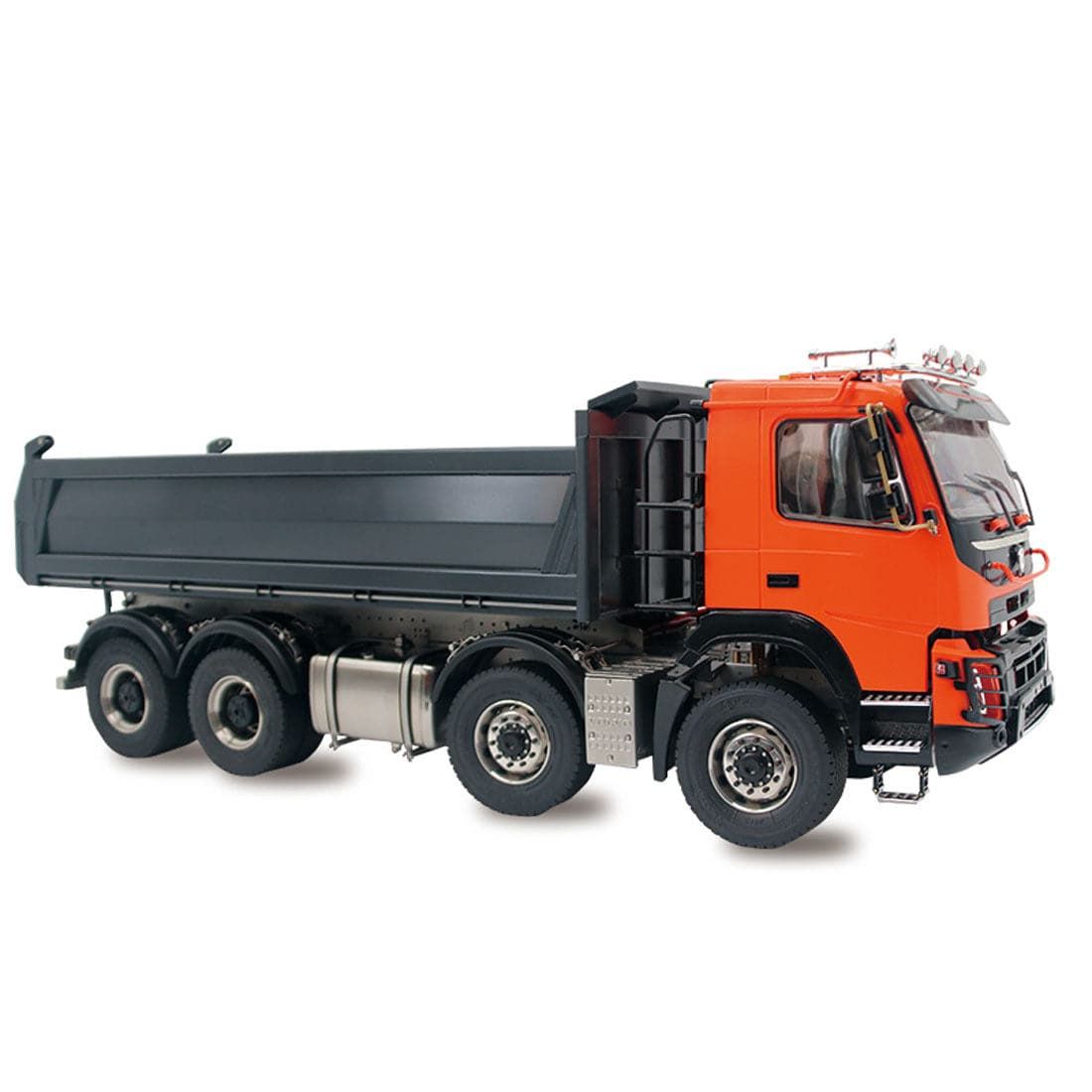

JDMODEL JDM-161 1/14 Scale 8x8 RC Hydraulic Dump Truck Heavy Duty All Wheel Drive Construction Model

This Isn't a Model. It's a 9.7kg Declaration of Power.

Feel the solid weight of authentic engineering in your hands. The JDMODEL JDM-161 is not built to be admired from a distance; it's a heavy-duty workhorse forged to conquer, command, and reshape the world at your feet. This is the ultimate experience for the enthusiast who understands that true power lies in the details, the torque, and the unstoppable force of an 8x8 drivetrain.

Why the JDM-161 Redefines RC Construction

The Power of Eight Wheels, The Brains of a 2-Speed Gearbox:
True power is nothing without control. The relentless 8x8 all-wheel-drive system, combined with remote-locking differentials, ensures that every ounce of torque from the 35T 540 motor finds purchase on the ground. Crawl over impossible obstacles with the massive 1:64 first gear ratio, then shift on the fly to the 1:6 second gear to transport your payload with authority.

hydraulic A Symphony of Hydraulic Force:
Witness the heart of this machine in action. The 5-stage, multi-level hydraulic cylinder, powered by a high-efficiency brushless oil pump, delivers an astonishing theoretical thrust of 400KG. The simulation-grade car bucket is designed for rapid, clean unloading, allowing you to move earth with unparalleled efficiency and realism. This is real hydraulic power, not a simple imitation.

Engineered for the Toughest Jobs:

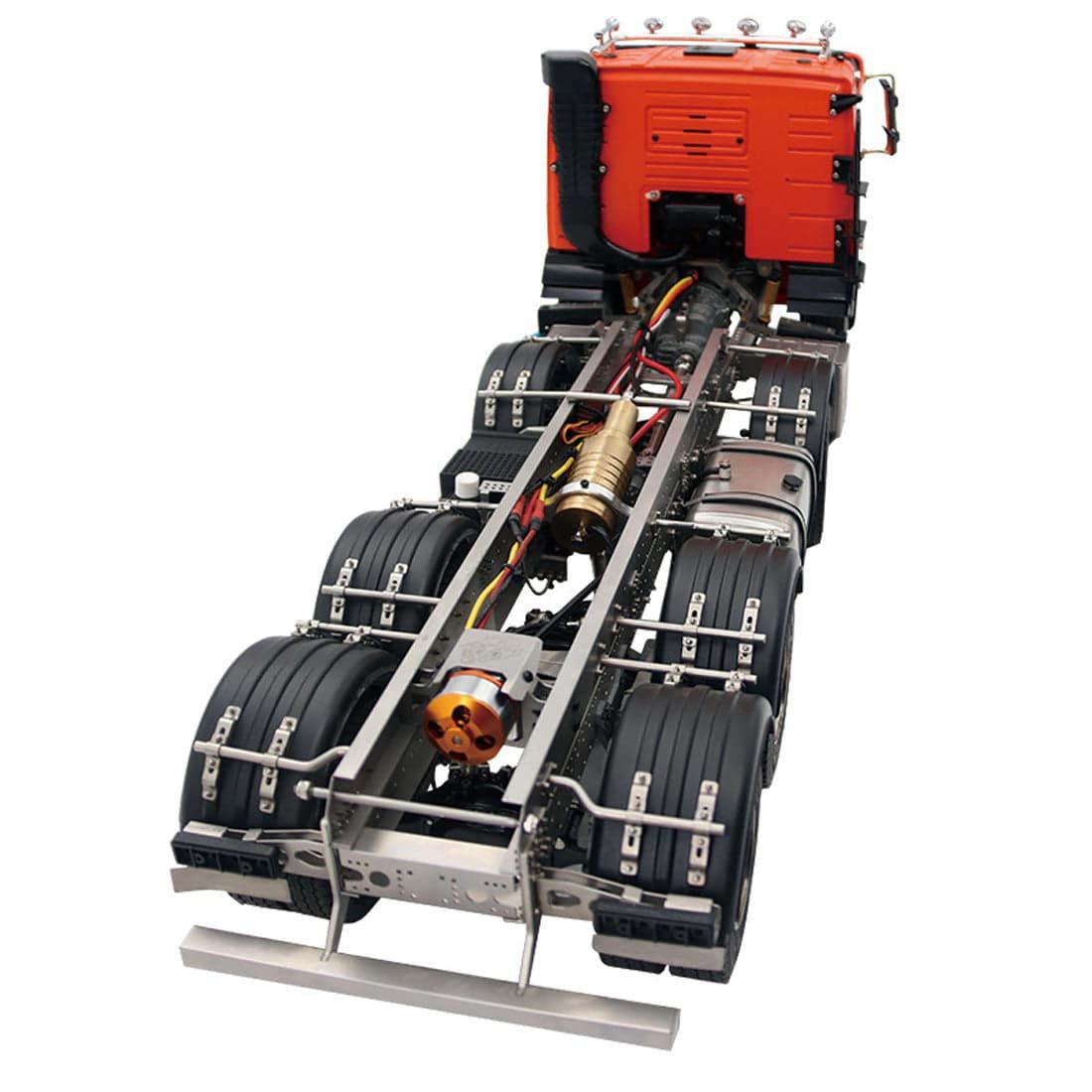

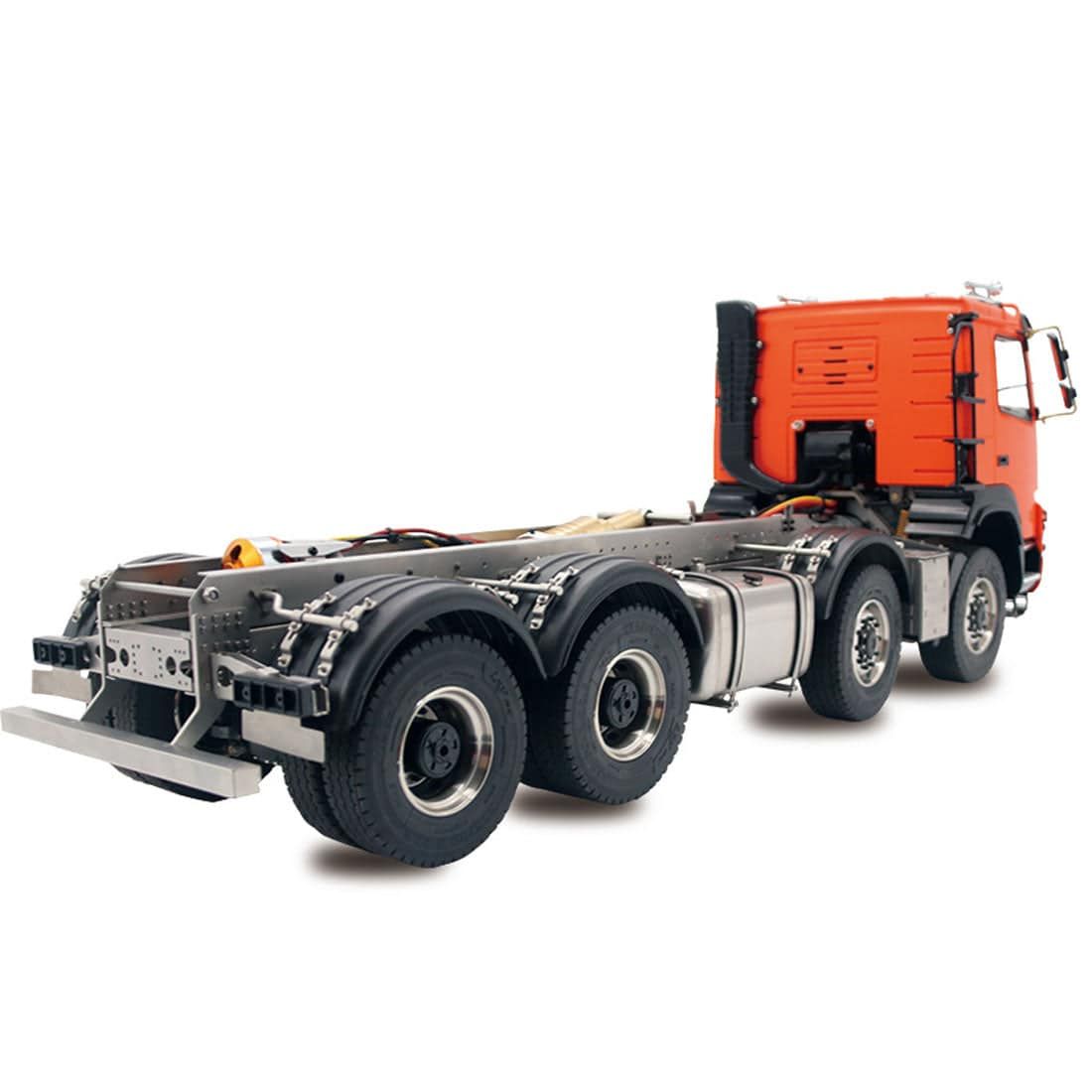

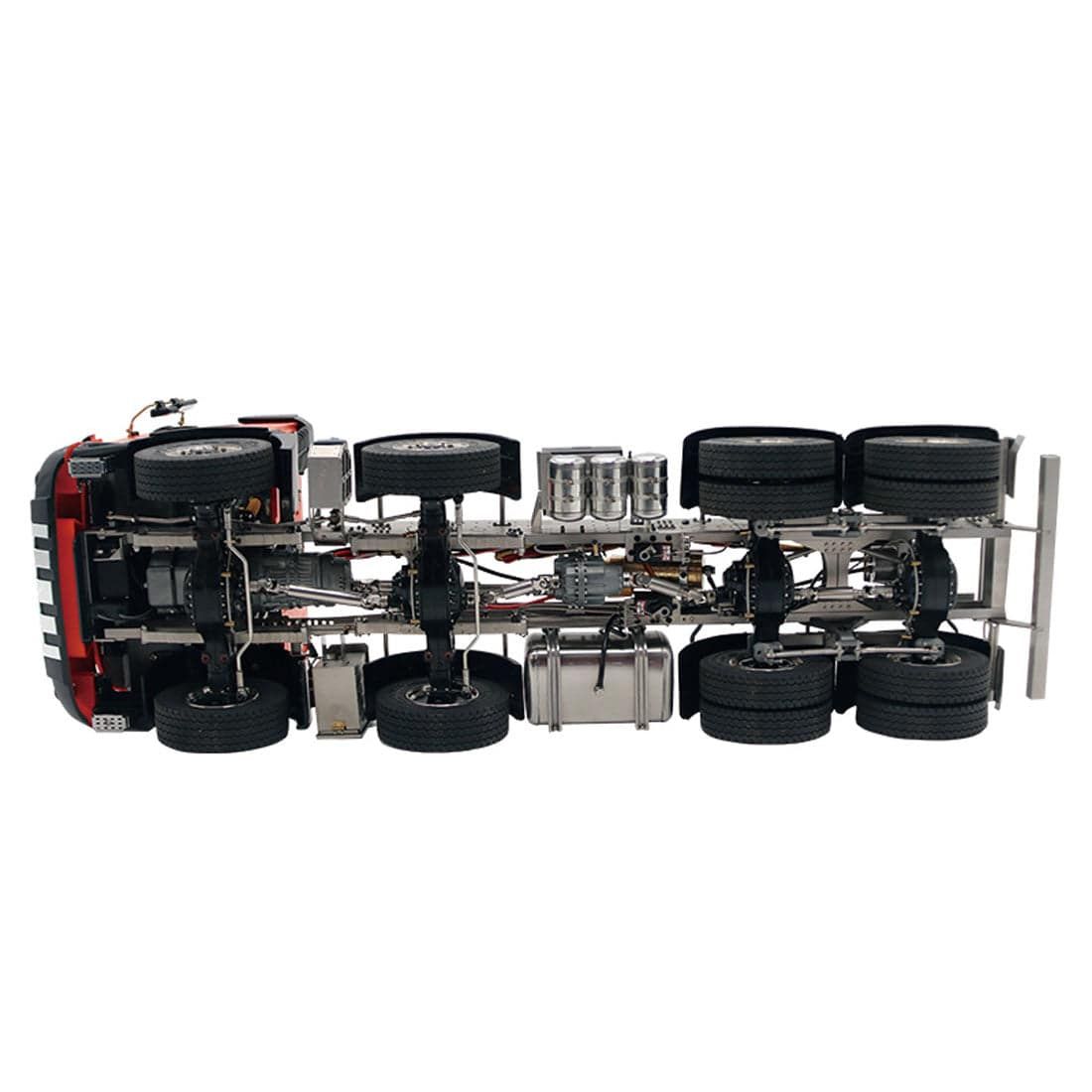

Every component is a testament to robust design. The zinc-alloy axles, pull-rod balance suspension, and parabolic steel plate springs work in concert to handle a 15KG load, even on a 45-degree incline. The double connecting rod steering system, driven by a 17KG high-torque servo, provides precise control and durability under the heaviest loads.

A Canvas for Your Vision:

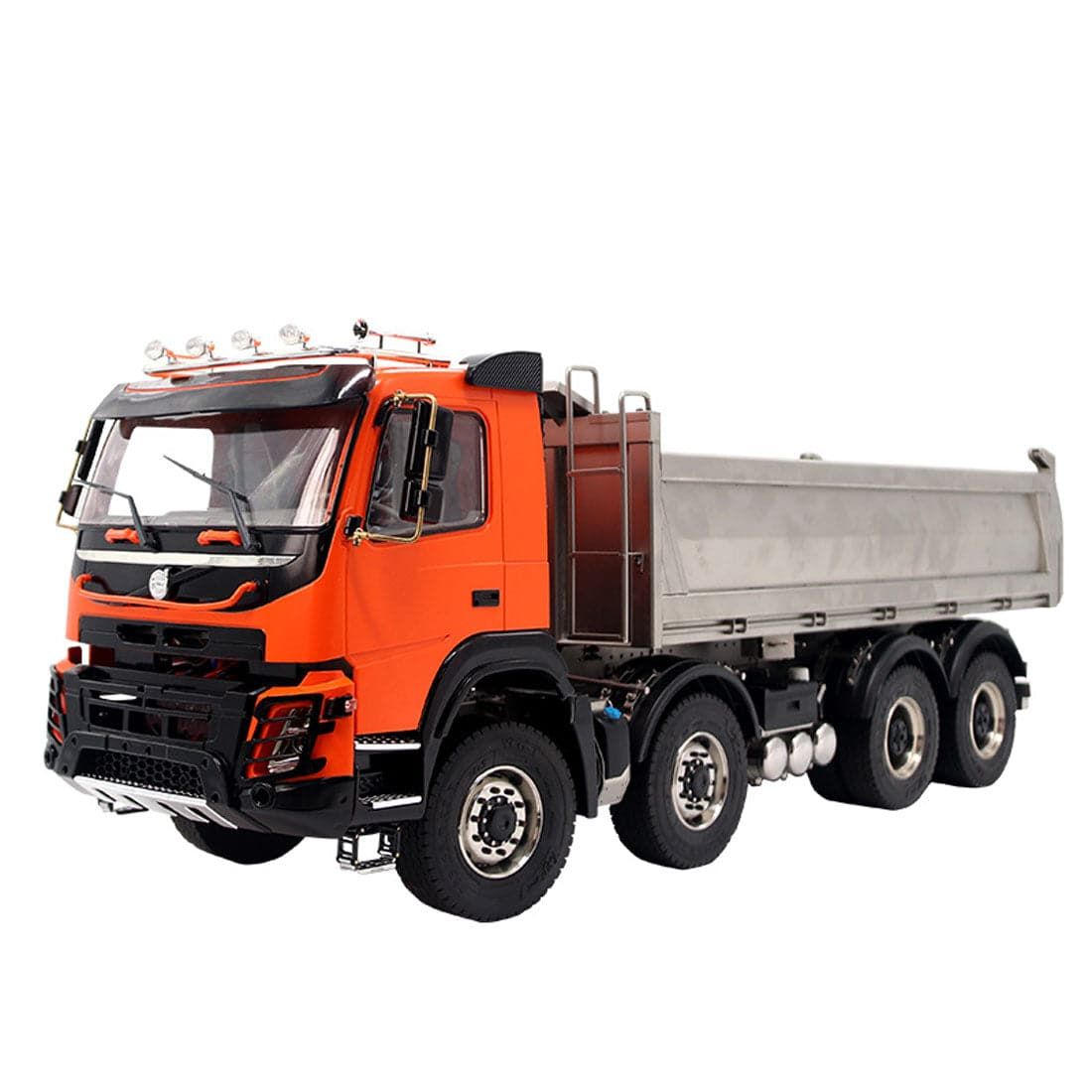

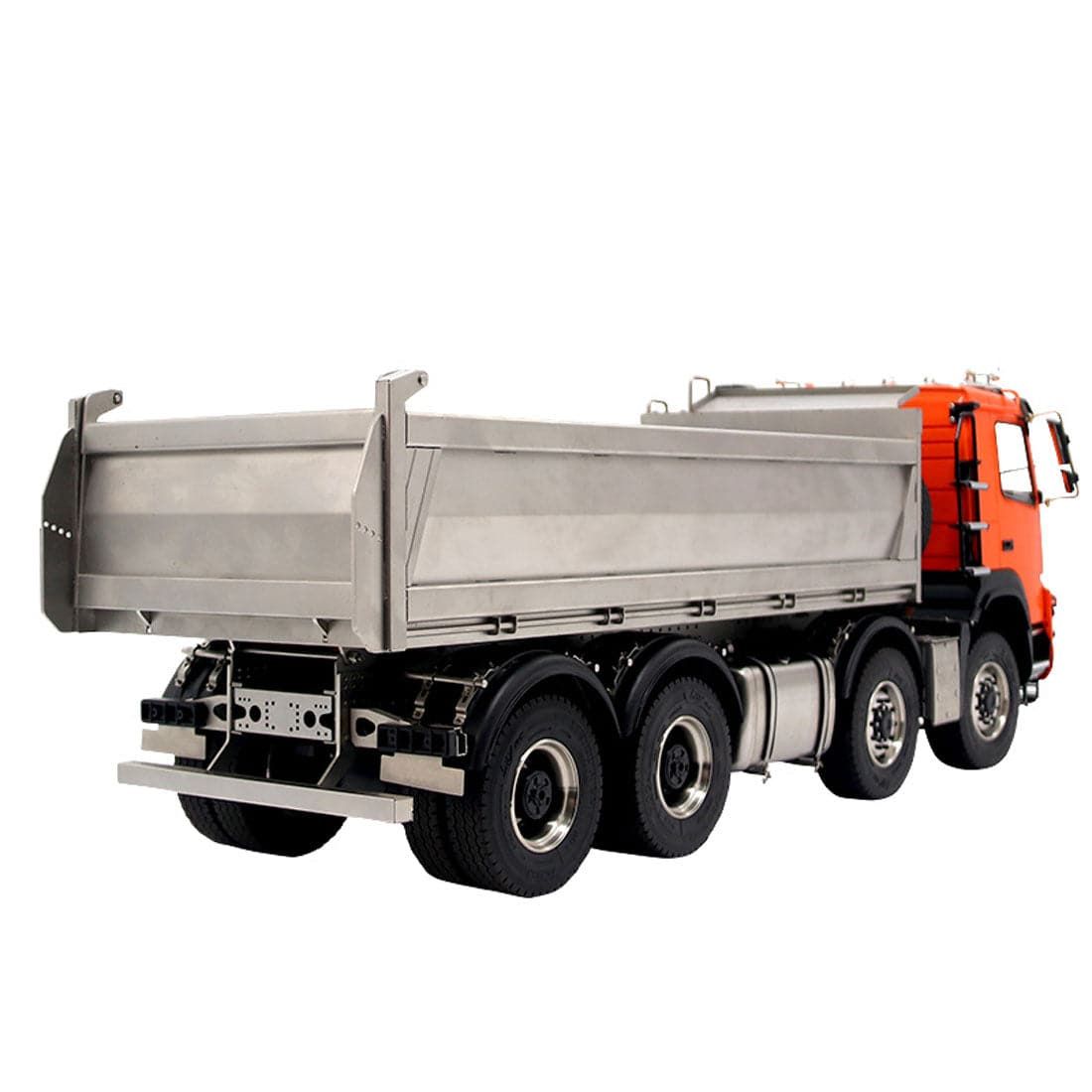

The JDM-161 arrives in its primary metal color, a blank canvas awaiting your personal touch. This is your opportunity to create a truly one-of-a-kind machine with a custom paint job. The realism extends to every detail, from the heat-dissipating 10-hole wheel hubs and deep-groove tires to the included 3-effect sound group that brings your worksite to life.

Bringing Your Workhorse to Life

To complete your setup and begin operations, you will need:

Vehicle Battery: A 3S 11.1V Lithium battery is required. (Must be within 150mm L x 45mm W x 40mm H - Not Included)
Remote Control Batteries: 4 x AA Batteries for the included FS-I6S controller. (Not Included)
Hydraulic Oil: #32 or #46 Hydraulic Oil. (Not Included)
Lights (Optional): The model is ready for a custom light group (3-5mm LEDs), allowing you to add another layer of realism.

Specifications:

Model: JDMODEL JDM-161 Gen.3
Scale: 1:14
Drive System: 8x8 All-Wheel Drive with Lockable Differentials
Gearbox: 2-Speed Planetary (1st Gear 1:64, 2nd Gear 1:6)
Motor: 35T 540 Brushed Motor
ESC: 320A 7.2-16.8V High Voltage ESC
Hydraulics: Brushless Pump, 5-Stage Cylinder (5MPa Pressure Resistance)
Theoretical Load: 15KG
Dimensions: 680mm x 210mm x 160mm
Weight: 9.7KG

What's In The Box:

1 x JDMODEL JDM-161 8x8 Hydraulic Dump Truck
1 x Flysky FS-I6S 2.4G 6CH Remote Controller
1 x 3-Effect Sound Group (Installed)

Your Partner in Heavy-Duty RC

We are as passionate about high-performance machinery as you are. This truck is the pinnacle of the hobby, and we are here to support your journey. For any questions, technical advice, or upgrade inquiries, our expert service team is on standby.

After-Sales Support: [email protected]
